Application
The spectrum of applications primarily covers the transmission of instantaneous values and provides the basis for the display and/or recording of flow rates in pipes. The current output is also used for various control and monitoring tasks.
Features

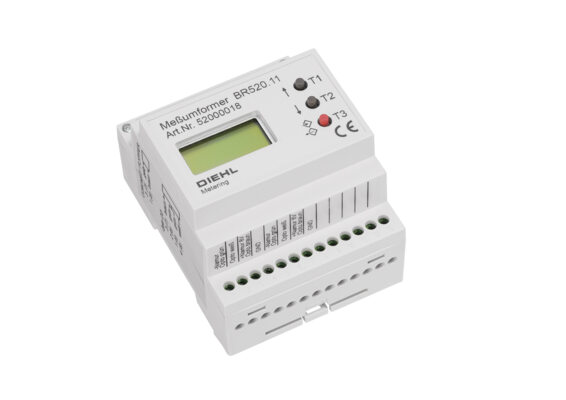

- Designed as snap-on housing for mounting rail

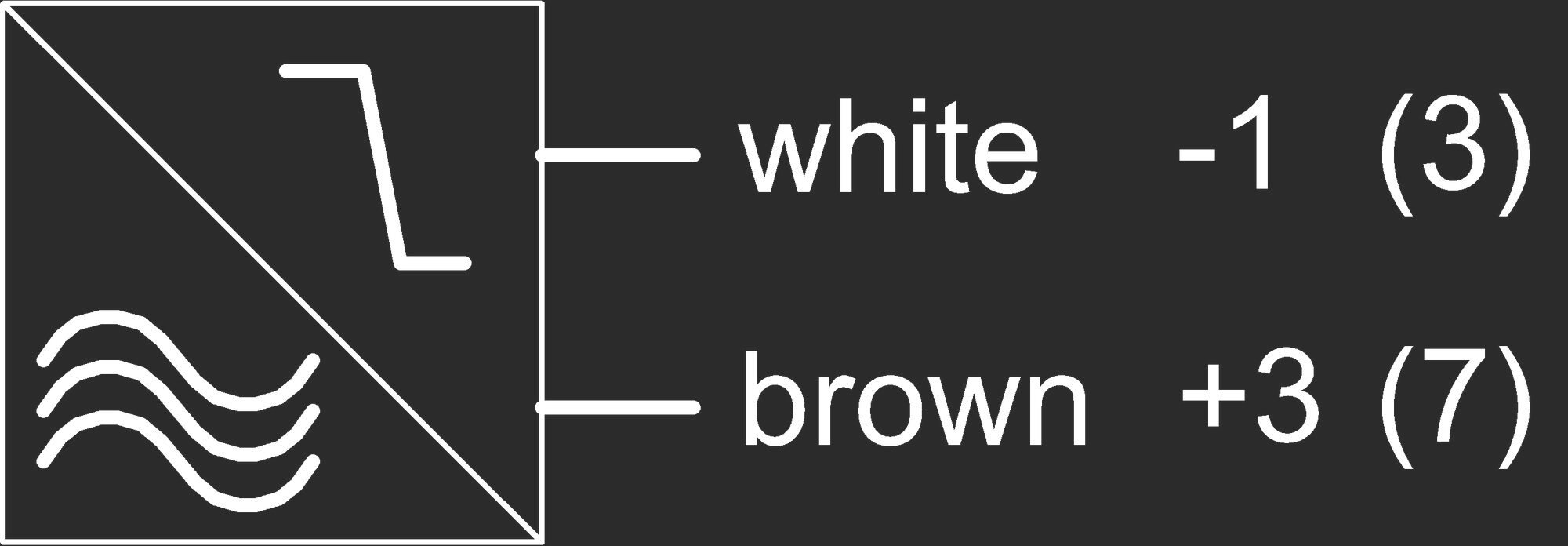

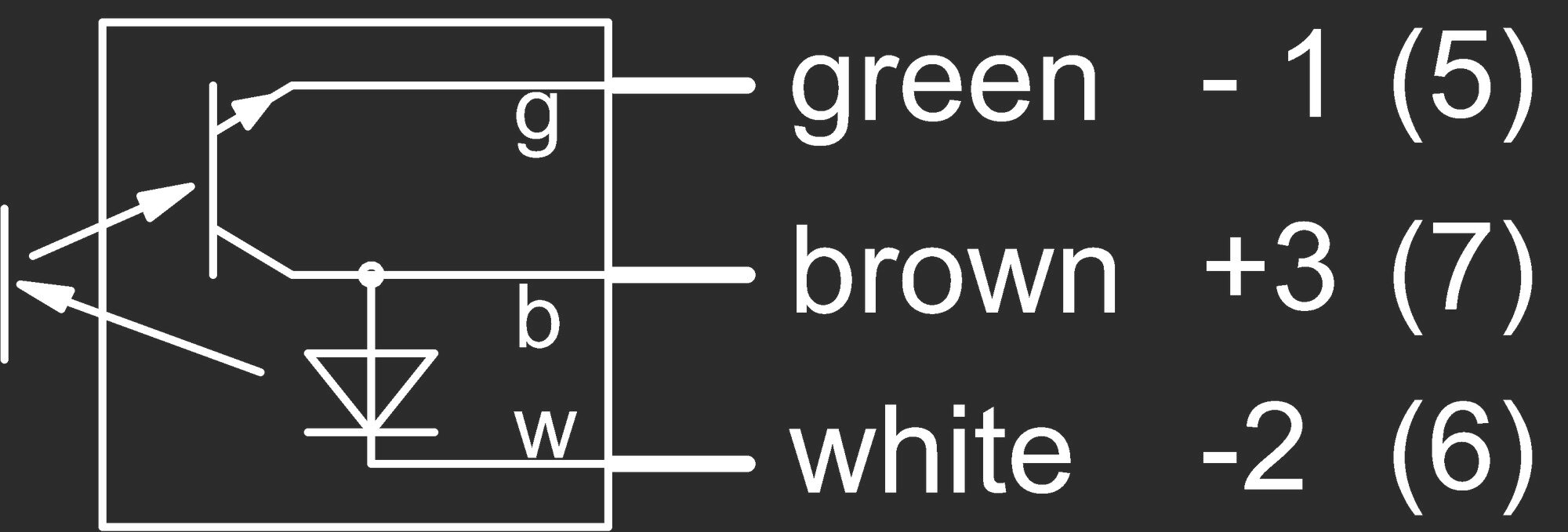

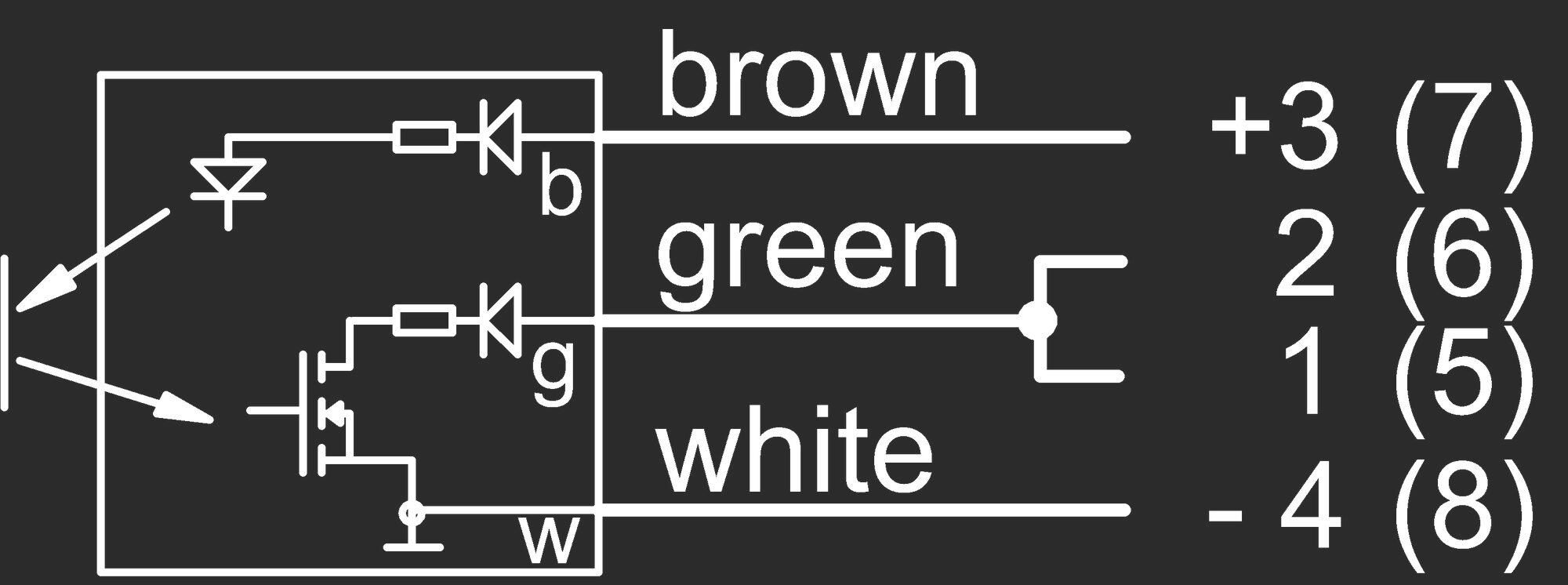

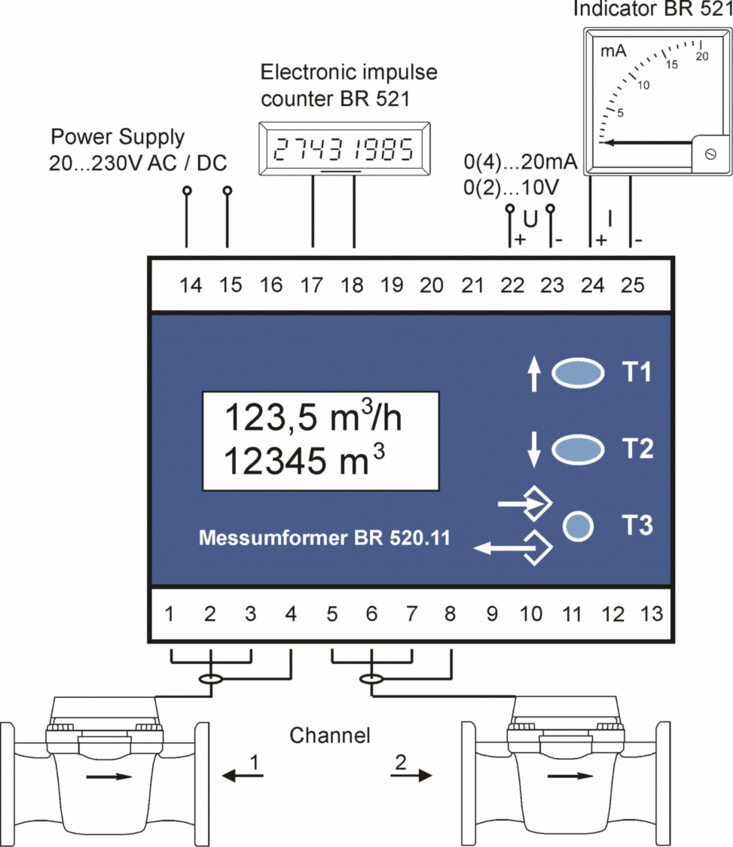

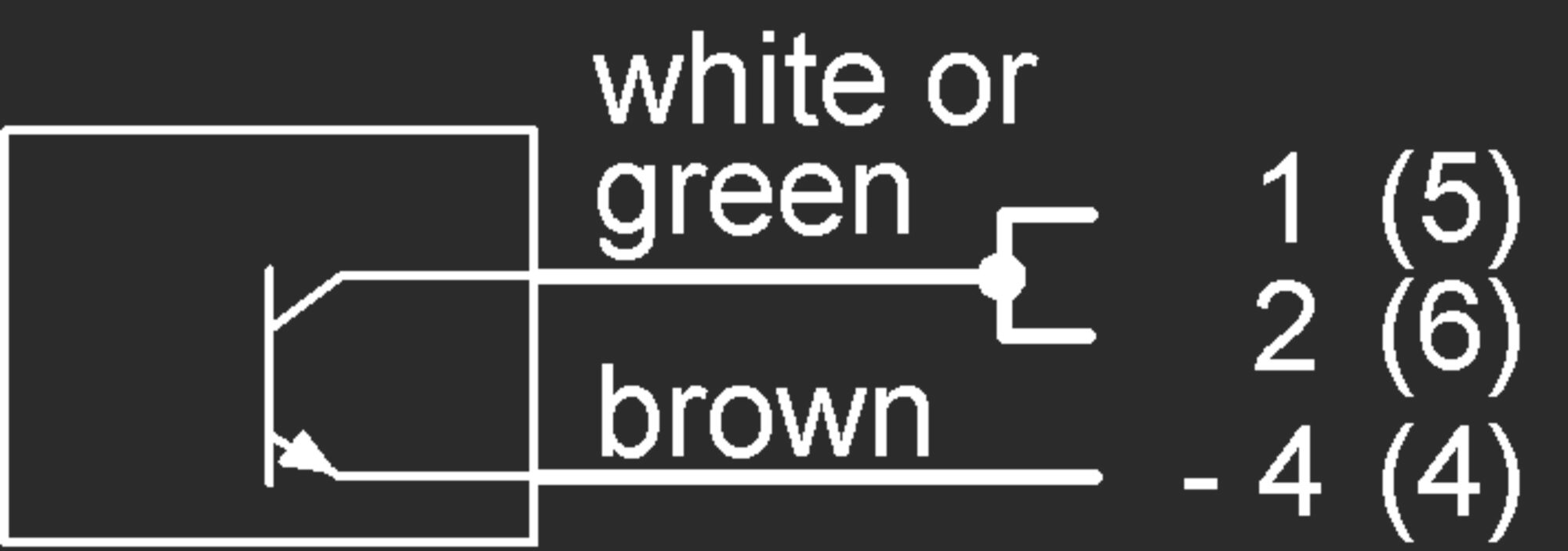

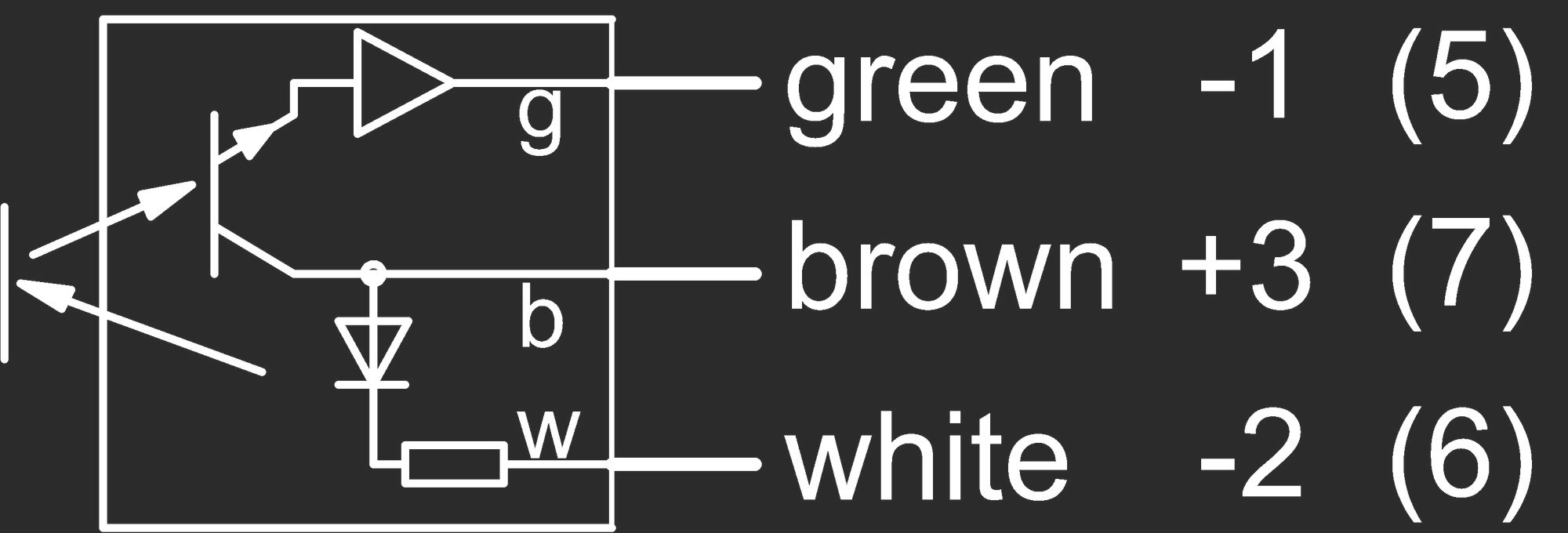

- 2-channel control options for compound meter: infrared reflex pulse transmitter (571), two-wire proximity switch to DIN 19234 (NAMUR) (572, 573) self-optimizing level, electronic counter module, mechanical compact energy meter RAY
- Front-panel programming buttons for setting menu controlled functions
- Freely programmable input pulse values
- Filtered output signal 0/4 mA ... 20 mA and 0/2 V ... 10 V
- 1 floating output (make contact, open collector)
- Electrically isolated measuring and supply circuits
- Selftest, self-monitoring
- LC display for flow rate (m3/h or l/s); min./max. flow rate; meter reading; menu guidance
- M-Bus interface (option)
